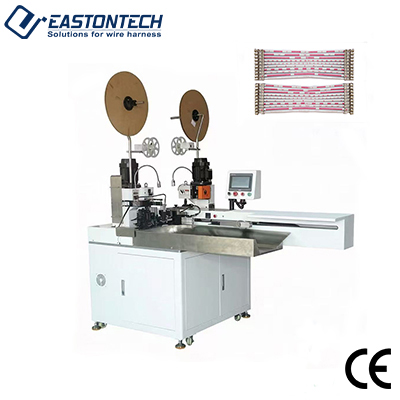

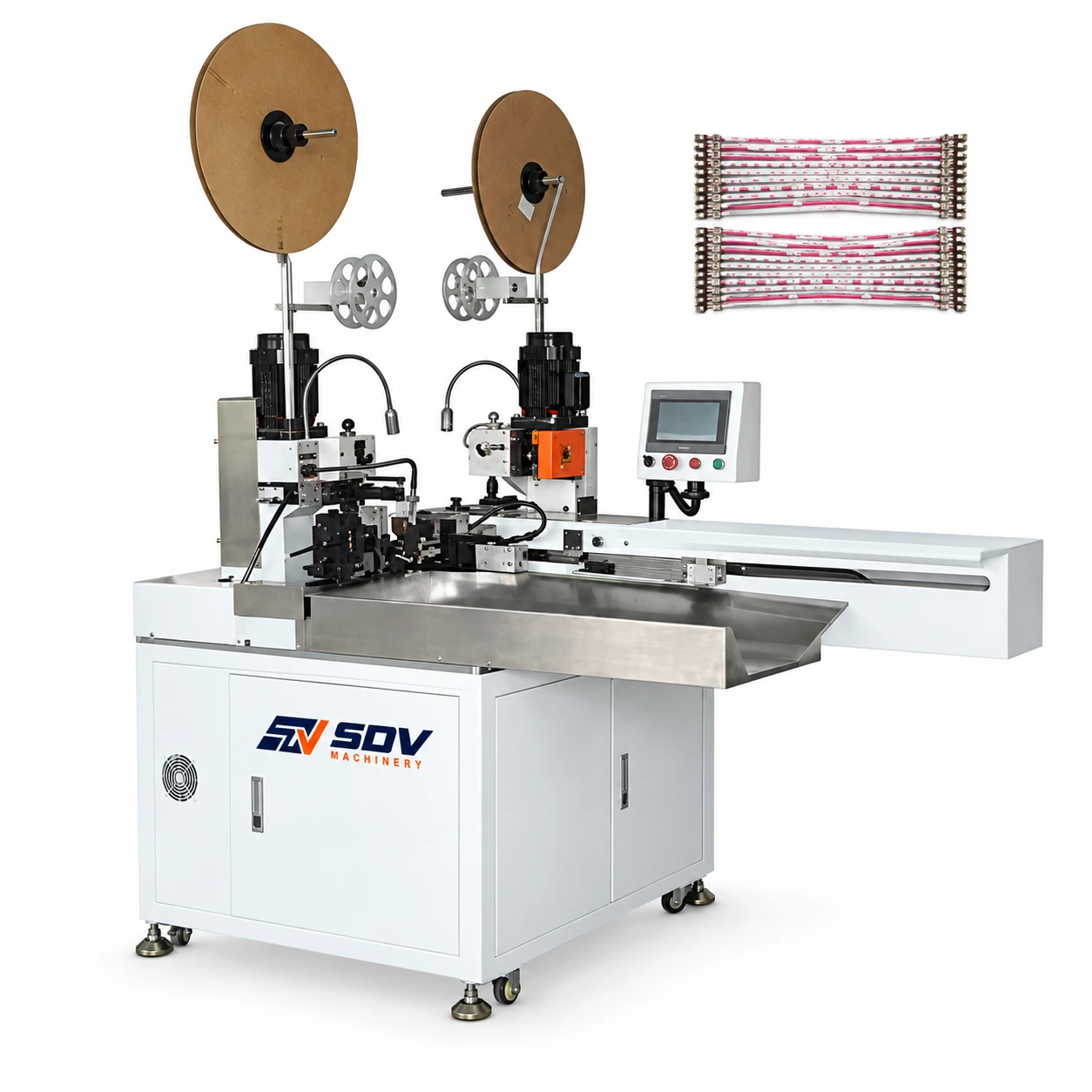

Automatic Flat Ribbon Cable Double Crimping Single End Tinning Machine EW-7845

Price of the selected optionon request
Delivery options

Description

EASTONTECH was founded in 2003 with ISO 9001 and CE certification. We are the leading manufacturer of wire harnessing equipment in China and our products have been sold to more than 100+ other countries in the world.

Specifications

Model
EW-7845
Machine Functions
Cutting, stripping, double-end crimping, wire twisting, single-end tinning, partial stripping with insulation retention
Product Customization
Single-core wires, flat cables, parallel wires (customizable)
Applicable Wires
UL/PVC/PE electronic wires, flat cables.
Stripping Length
Front end: 0–5 mm, Rear end: 0–5 mm
Twisting Length
3.0–6 mm
Tinning Length
0.1–6 mm
Processing Length
Minimum 32 mm, Standard machine: 1.1 m (customizable)
Wire Range
18–30AWG
Applicable Terminals
1.0, 1.25, PH2.0, XH2.54, SM, JC25, Dupont, VH3.96, etc.
Wire Width
Max. 40 mm
Special Function
Double-end crimping (supports same or opposite orientation)
Machine Dimensions
L2200 mm × W1000 mm × H1650 mm
Detection Functions
Wire missing alarm, terminal missing alarm, wire knot alarm
Weight
550 kg
Rated Power Supply
AC 220V / 50Hz / 60Hz
Rated Current
5 A
Power Consumption
850 W
Air Pressure
0.6 MPa
Installation Area
Approx. 2.5 m²
