Feature
● Large-Diameter Cable Processing

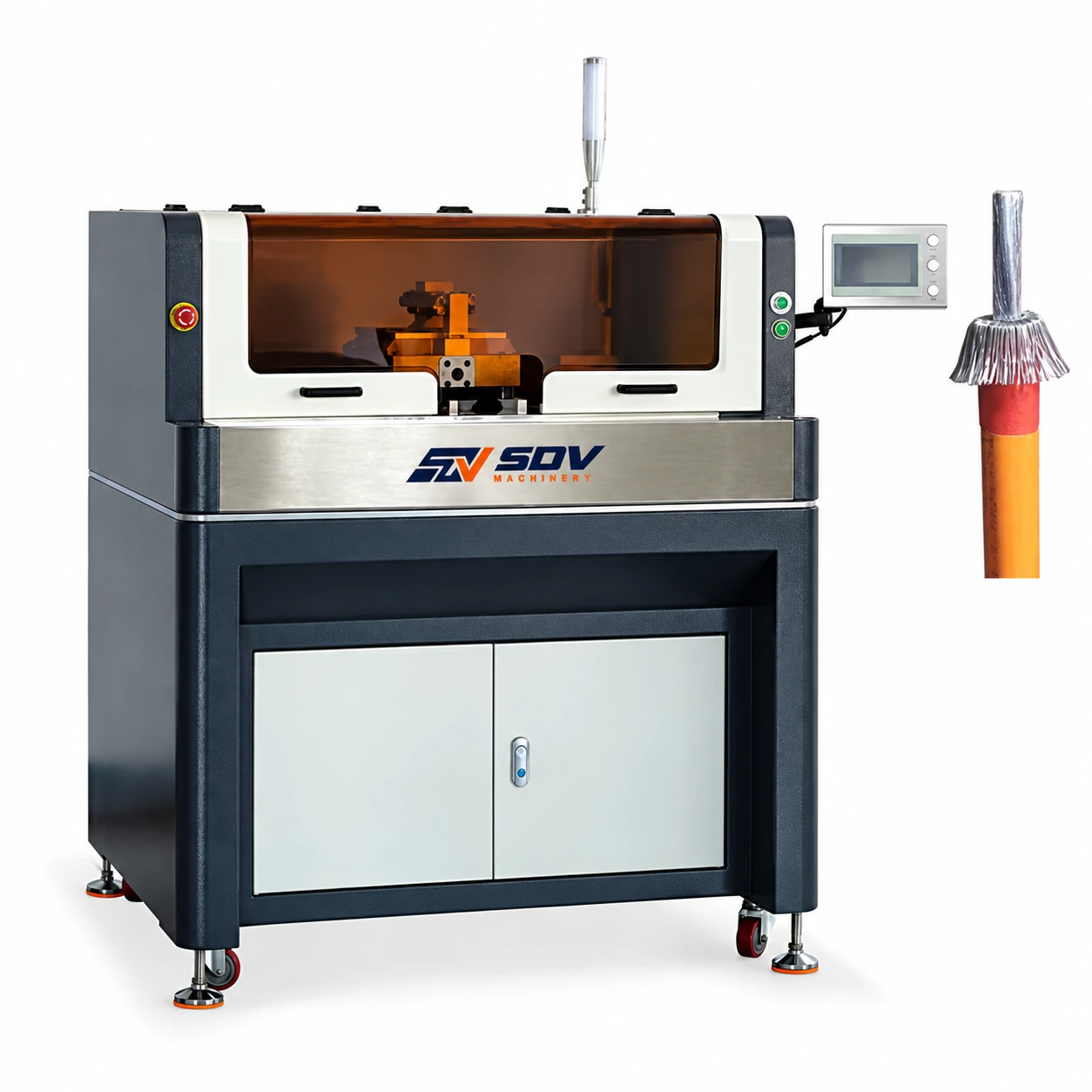

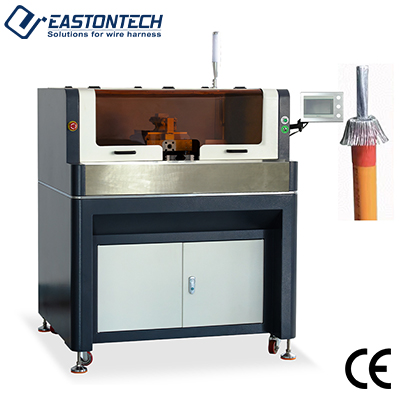

The EW-1140 is designed for cables with an applicable diameter of 6.0–22.0mm, providing an automated solution for larger cables that are outside the typical range of standard wire stripping machines.
● Automatic Shield Braid Folding
The machine combines cable stripping and shield braid folding in an automatic processing operation. This helps standardize the preparation of shielded cables and reduces repetitive manual folding work.
● Flexible 15–120mm Stripping Length
The stripping length can be adjusted from 15 to 120mm, allowing the machine to accommodate different cable preparation requirements. The specified minimum shield remaining length is 4mm.
● High Production Efficiency
The EW-1140 provides a productivity of approximately 700–1,000 pieces per hour, depending on the processed cable material and operating conditions. Automatic operation helps improve production consistency and reduce manual processing requirements.
● Industrial Pneumatic & Electrical Configuration
The machine operates with 0.6–0.8MPa air pressure and supports 220V/110V, 50/60Hz power supplies. It is designed for continuous industrial production environments with an operating temperature range of -5 to 40°C.
Application Range
The EW-1140 is designed for industrial cable processing applications where large-diameter cables require controlled stripping and shield braid folding.
● Automotive Wire Harness Manufacturing: Suitable for processing larger shielded cables used in automotive wiring harness and electrical connection assemblies.
● Shielded Cable Assembly: Designed for applications requiring controlled cable stripping and shield braid folding before subsequent cable assembly.
● Industrial Wire Harnesses: Suitable for large-diameter cables used in industrial equipment, machinery and electrical systems.
● Power & Electrical Cable Processing: Applicable to cable processing operations where larger cable diameters require automated preparation.
● Communication & Signal Cables: Suitable for shielded cable applications requiring consistent preparation of the shielding layer.
● Cable Assembly Production: Helps manufacturers automate repetitive stripping and shield folding operations in high-volume production environments.
