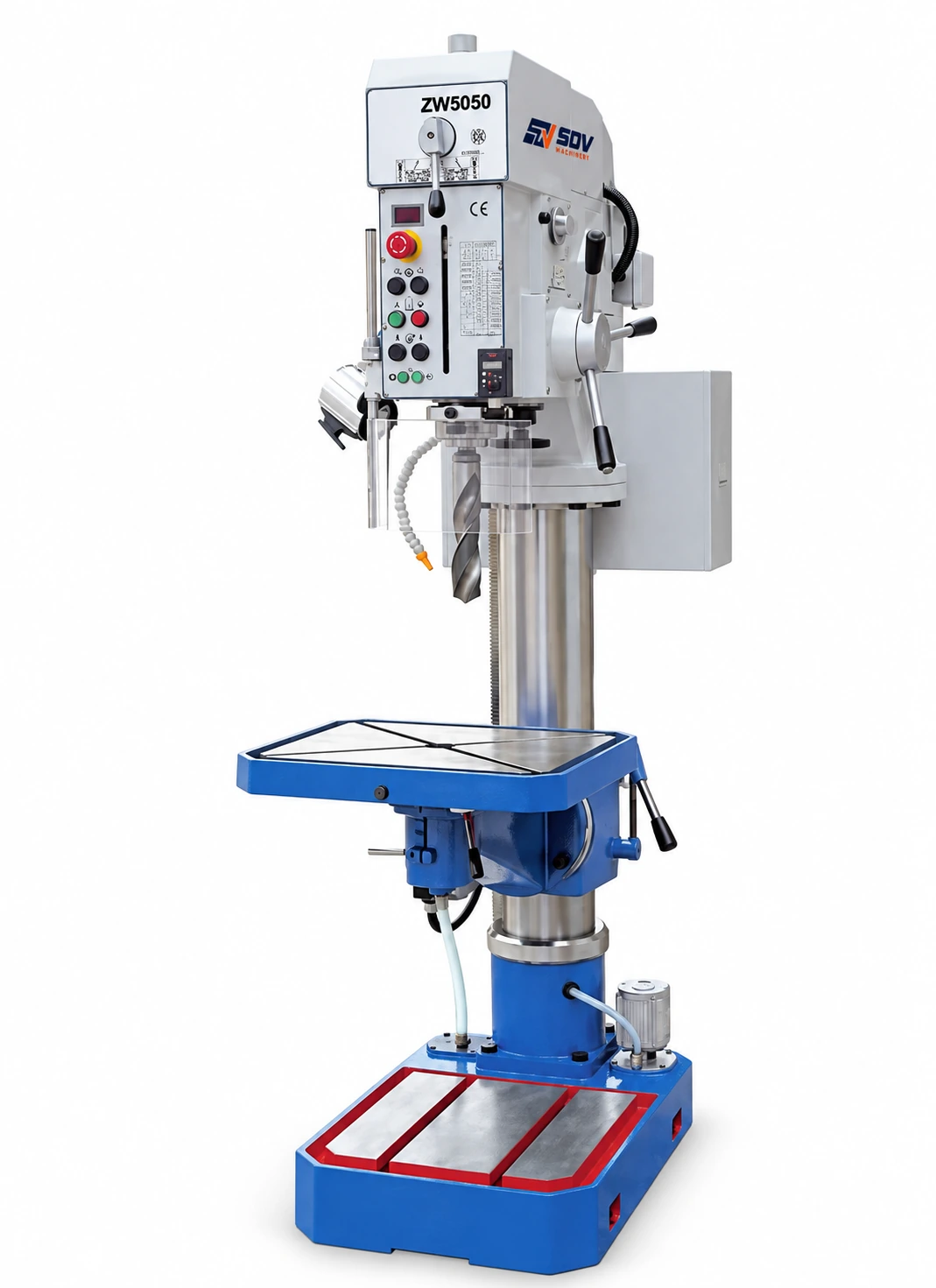

ZW5050 COLUMN TYPE OF VERTICAL DRILLING MACHINE

Technical data Max. drilling capacity 50 mm Max. face milling capacity 80 mm Max. tapping capacity 32 mm Table total/effective surface 580 x 460 mm / 445 x 435 mm Table vertical travel 530 mm Table tilting +/- 45° Diameter of column 180 mm Max. spindle-table distance 600 mm Spindle-base distance 1185 mm Spindle stroke 200 mm Distance from spindle axis to column 360 mm Spindle taper MT 4 Range of spindle speed 50 - 1500 r/min / stepless Spindle feed steps 4 Spindle feed range 0,1 / 0,2 / 0,3 / 0,4 mm/r Mode of spindle feed electromagnetic Motor 3 kW / 230/400 V Dimensions 1035 x 680 x 2300 mm Weight 655 kg
