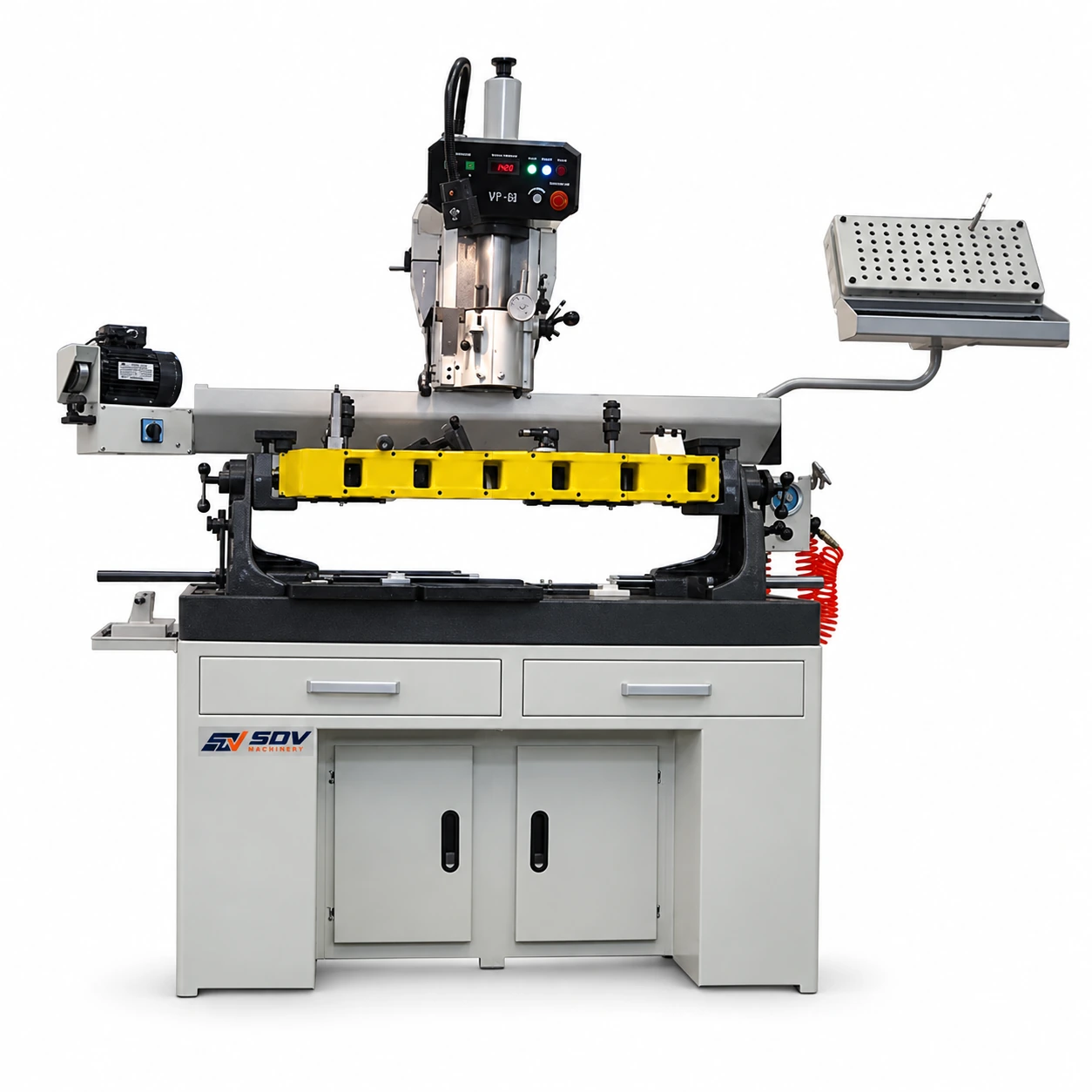

VT60 Valve Guide and Seat Boring Machine

TECHNICAL FEATURES: Machine Space requirements VALVE SEAT GUIDE BORING VT-60 Length Mm/inch 1440/56.7 Width Mm/inch 1050/41.3 Height Mm/inch 2170/85.4 Machine Space requirements Length Unlimited Width Mm/inch 500/19.7 Height Mm/inch 450/17.7 Crosswise work piece tilting Degrees +15~-15 Machining capacity mm 14-63.5 inch 0.55-3.6 Work head displacement Lengthwise Mm/inch 930/37 Crosswise Mm/inch 40/1.6 Sphere cylinder travel Mm/inch 9/0.4 Spindle Max. spindle inclination Degrees 5 Spindle travel Mm/inch 200/8 Spindle motor power Kw 1.8 Spindle rotation Rpm 100-1200 Power supply 380V/50Hz 3Ph OR 220V/60Hz 3Ph Air flow Bar/psi 6/87 Max. air 1/min/cfm 300/11 Level of noise at 400rpm Dba 72 At 1200rpm dba 82 N W/G W Kg/1bs 1050/2310
