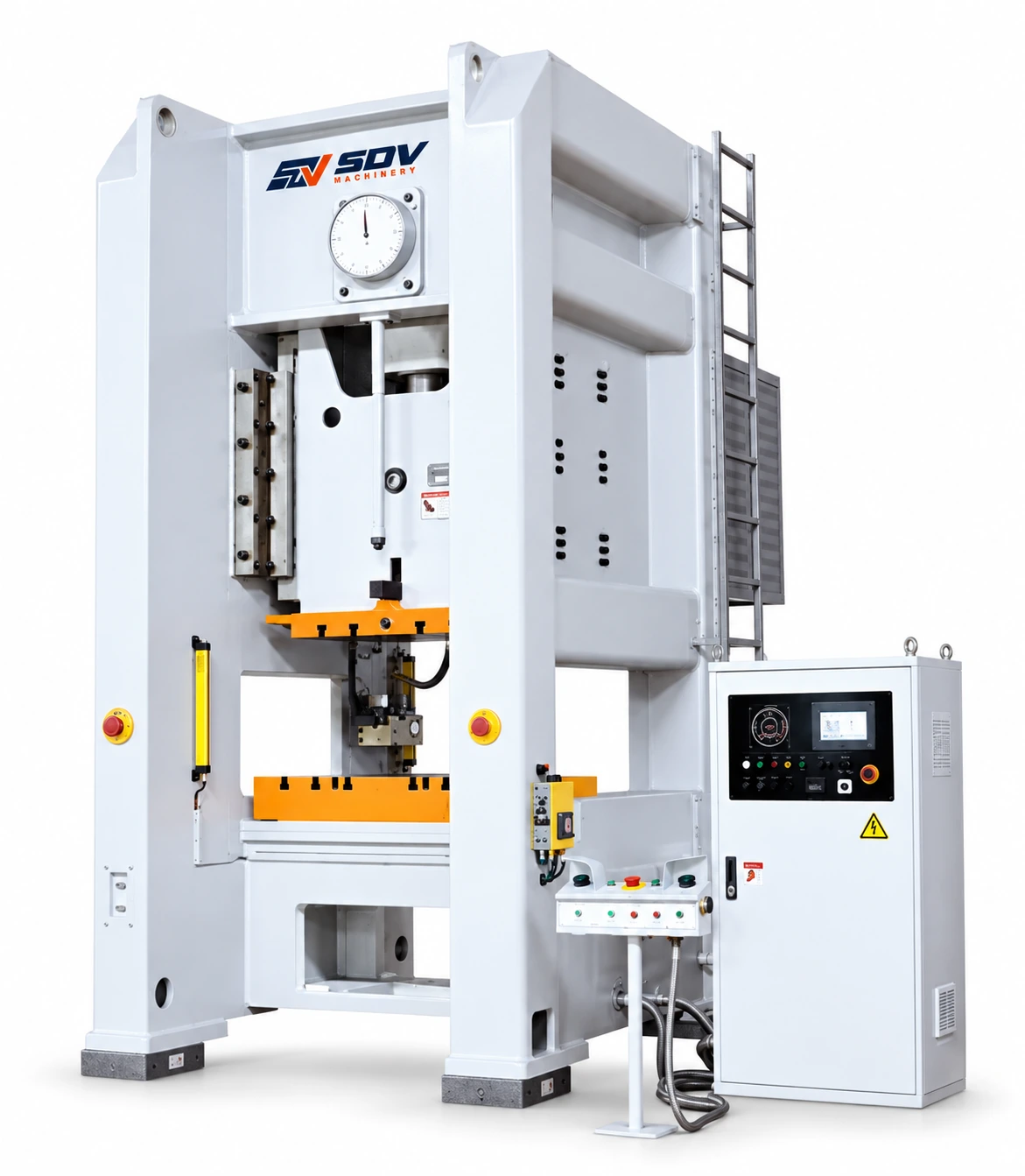

SP1 series gantry type single point press

Технические характеристики

SP1 series gantry type single point press FEATURE

◆JIS 1 accuracy.◆Entire steel welded frame.◆Combined wet friction clutch.◆Octahedral lengthened gib.◆Hydraulic overload protector.◆Elec.adjustment with digital...

FEATURE

◆JIS 1 accuracy.◆Entire steel welded frame.◆Combined wet friction clutch.◆Octahedral lengthened gib.◆Hydraulic overload protector.◆Elec.adjustment with digital display.◆Lifting balance cylinder.◆Imported dual...

SP1-110

SP1-160 | SP1-200 | SP1-250 | SP1-315 | SP1-400 | SP1-500 | SP1-630 | SP1-800

Nominal force

kN | 1100 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 | 6300 | 8000

Nominal stroke

mm | 6 | 6 | 6 | 8 | 8 | 10 | 10 | 10 | 10
