Wire Processing and Electrical Installation Equipment

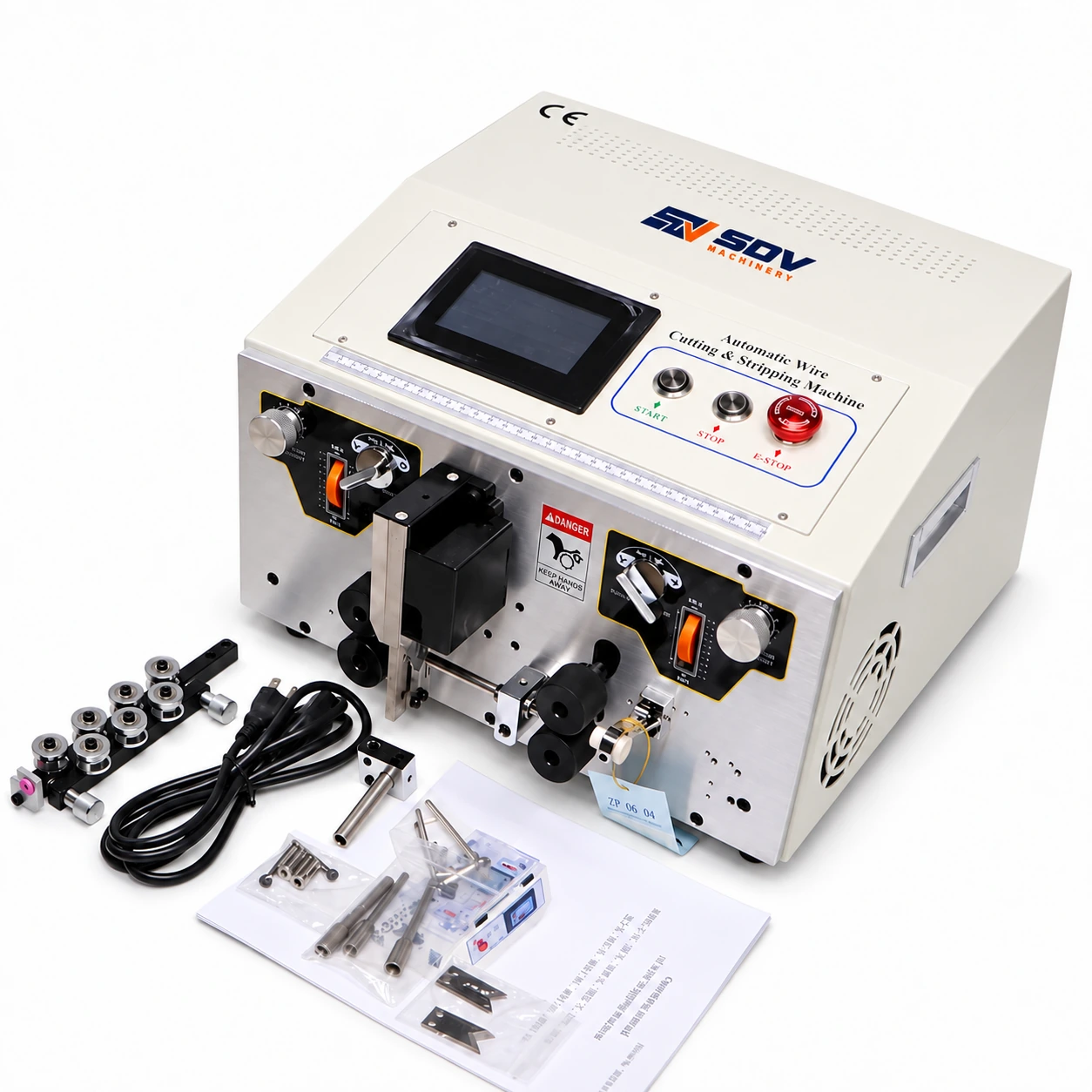

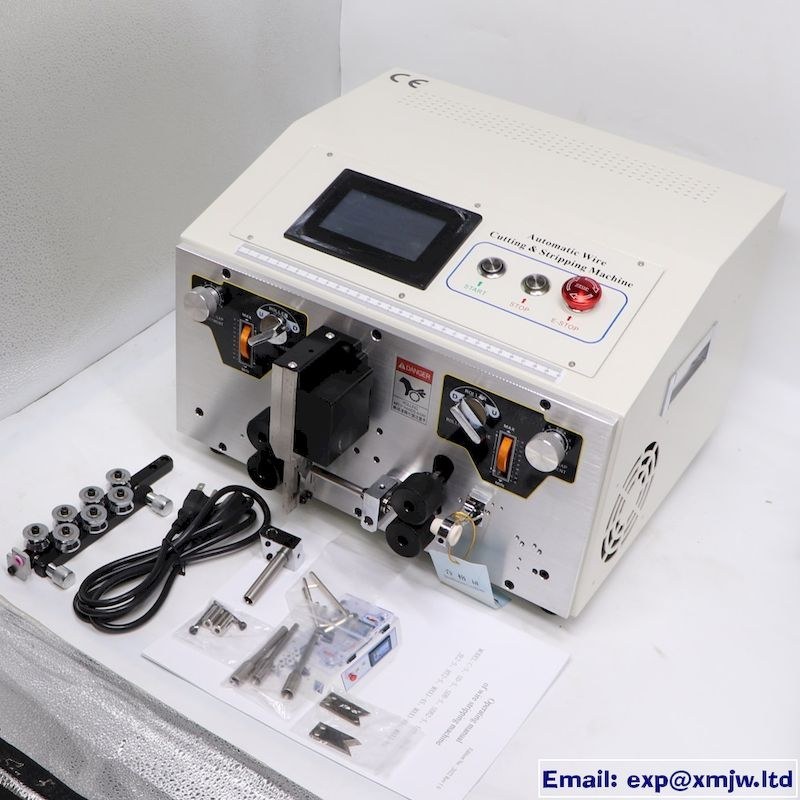

Touch Screen Wire Stripping Machine with Jump Tube SWT508-JE/S

300W 0.1-8mm2 Touch Screen Wire Stripping Machine with Jump Tube Cable Peeling Cutting Tools For 8 Square StripperModel:SWT508-JE/S(8mm² touch screen stripper with jump tube)(With disconnection device)(Forward reverse straightener is optional)(Protective cover is optional)Weight:30KG Power:300WElectrical connection: 110V/220V 50HZ/60HZOperation interface: 4.3 inch Chinese and English switching touch screen displayMachine dimension: 450*420*290mmWire length range:1~9999mmStrip length:Front end:0-40;rear end:0-40mmLength accuracy: ± (0.002xL)mmIntermediate peeling times:16 timesWire cross section: 0.1~8mm²Max conduit inside diameter:¢10mmWire material:PVC,Teflon,Braided,Fiberglass wireBlade material: High-speed steelTransport speed: (L=100MM piece/hour) 3000-4000 piecesDriving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step) ApplicationComputer Blade...

Цена выбранного вариантапо запросу
Варианты поставки

Описание

300W 0.1-8mm2 Touch Screen Wire Stripping Machine with Jump Tube Cable Peeling Cutting Tools For 8 Square StripperModel:SWT508-JE/S(8mm² touch screen stripper with jump tube)(With disconnection device)(Forward reverse straightener is optional)(Protective cover is optional)Weight:30KG Power:300WElectrical connection: 110V/220V 50HZ/60HZOperation interface: 4.3 inch Chinese and English switching touch screen displayMachine dimension: 450*420*290mmWire length range:1~9999mmStrip length:Front end:0-40;rear end:0-40mmLength accuracy: ± (0.002xL)mmIntermediate peeling times:16 timesWire cross section: 0.1~8mm²Max conduit inside diameter:¢10mmWire material:PVC,Teflon,Braided,Fiberglass wireBlade material: High-speed steelTransport speed: (L=100MM piece/hour) 3000-4000 piecesDriving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step) ApplicationComputer Blade...

Технические характеристики

Application
Computer
Blade material
High-speed steel
Certification
CE;FCC;RoHS
Electrical connection
110V/220V 50HZ/60HZ
Intermediate peeling times
16 times
Заявка на Touch Screen Wire Stripping Machine with Jump Tube SWT508-JE/S
