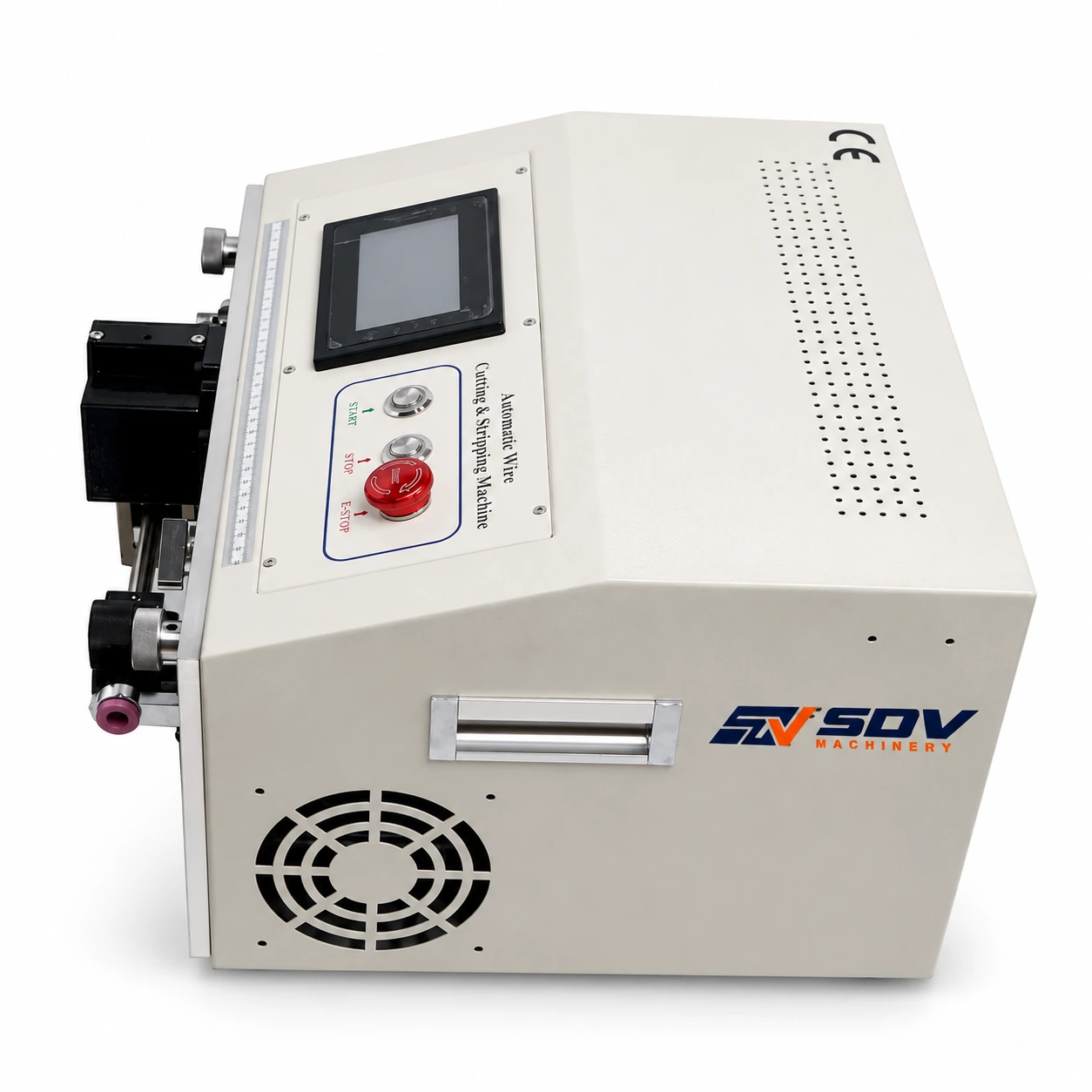

10mm² Scrap Cable Wire Stripping Machine - BV Wire SWT508-JE2/S

0.1mm To 10mm2 Section Wire Stripping Peeling Machine BV Single Strand Wire 6mm² Scrap Cable Stripper Cutter Tool with Blades10mm² touch screen stripper with jump tube) (With disconnection device)(Forward reverse straightener is optional)(Protective cover is optional) Weight:32KG Power:450W Electrical connection: 110V/220V 50HZ/60HZ Operation interface: 4.3 inch Chinese and English switching touch screen display Machine dimension: 450*420*290mm Wire length range:1~9999mm Strip length:Front end:0-50;rear end:0-50mm Length accuracy: ± (0.002xL)mm Intermediate peeling times:16 times Wire cross section: 0.1~10mm² ( BV single strand wire 6mm²) Max conduit inside diameter:¢10mm Wire material:PVC,Teflon,Braided,Fiberglass wire Blade material: High-speed steel Transport speed: (L=100MM piece/hour) 3000-4000 pieces Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per...

Цена выбранного вариантапо запросу
Варианты поставки

Описание

0.1mm To 10mm2 Section Wire Stripping Peeling Machine BV Single Strand Wire 6mm² Scrap Cable Stripper Cutter Tool with Blades10mm² touch screen stripper with jump tube) (With disconnection device)(Forward reverse straightener is optional)(Protective cover is optional) Weight:32KG Power:450W Electrical connection: 110V/220V 50HZ/60HZ Operation interface: 4.3 inch Chinese and English switching touch screen display Machine dimension: 450*420*290mm Wire length range:1~9999mm Strip length:Front end:0-50;rear end:0-50mm Length accuracy: ± (0.002xL)mm Intermediate peeling times:16 times Wire cross section: 0.1~10mm² ( BV single strand wire 6mm²) Max conduit inside diameter:¢10mm Wire material:PVC,Teflon,Braided,Fiberglass wire Blade material: High-speed steel Transport speed: (L=100MM piece/hour) 3000-4000 pieces Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per...

Технические характеристики

Application
Computer
Blade material
hard tungsten steel
Certification
CE;FCC;RoHS
is_customized
Yes
Model
SWT508-JE2/S wire stripping machine
