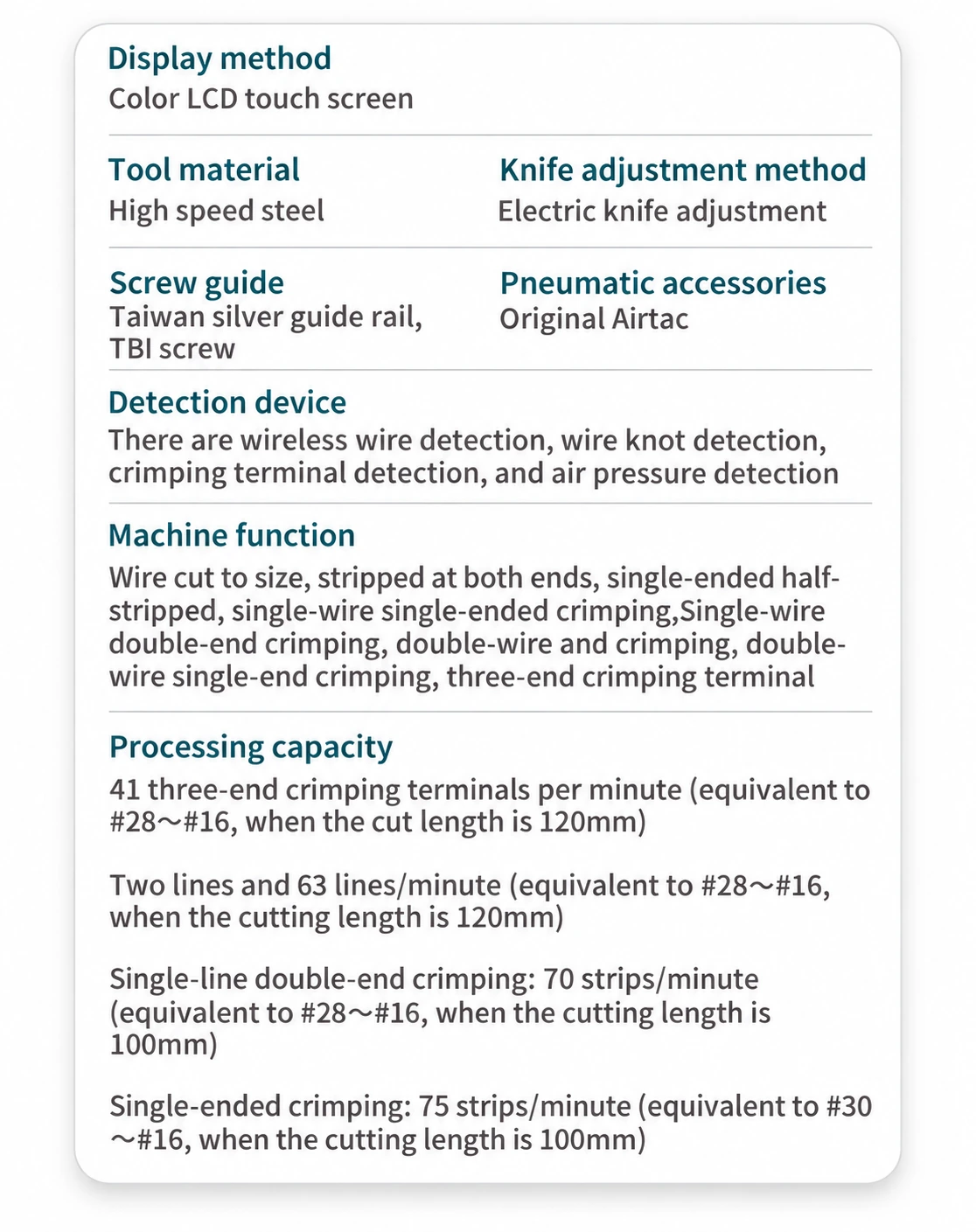

Product Description Name Fully Automatic jacket cable strip outside cutting and stripping terminal crimping machine / horizontal straight flat terminal crimping machinePower2.5 KWspeed 2400 pcs per hourcutting length 50-9999mmpressure 2 TonWire RangeAWG16-28#Weight 480 kg Suitable terminal: Horizontal type, vertical type, flag typeOperation mode: Automatic operation/ manual operationCutting tolerance: When the cutting length is less than 100mm,the deviation is 0.3mm+(set cutting length x0.002) When the cutting length is more than 100mm,the deviation is 0.5mm + (set cutting length x0.002)Stripping length: FRONTEND:1.00~8.00MM(HALF STRIPPING LENGTH: 2.00~80MM) REAR END:1.00~8.00MM(HALF STRIPPING LENGTH:2.00~6.0MM)Processing capacity41 three-end crimping terminals per minute (equivalent to#28~#16,when the cut length is 120mm)Two lines and 63 lines/minute(equivalent to #28~#16.when the...
