Dust Collectors DM-400
Dust Collectors DM-400. Specifications, compatibility and available configuration are listed in the product details.
по запросу
Под заказ
Wood and Polymer Processing

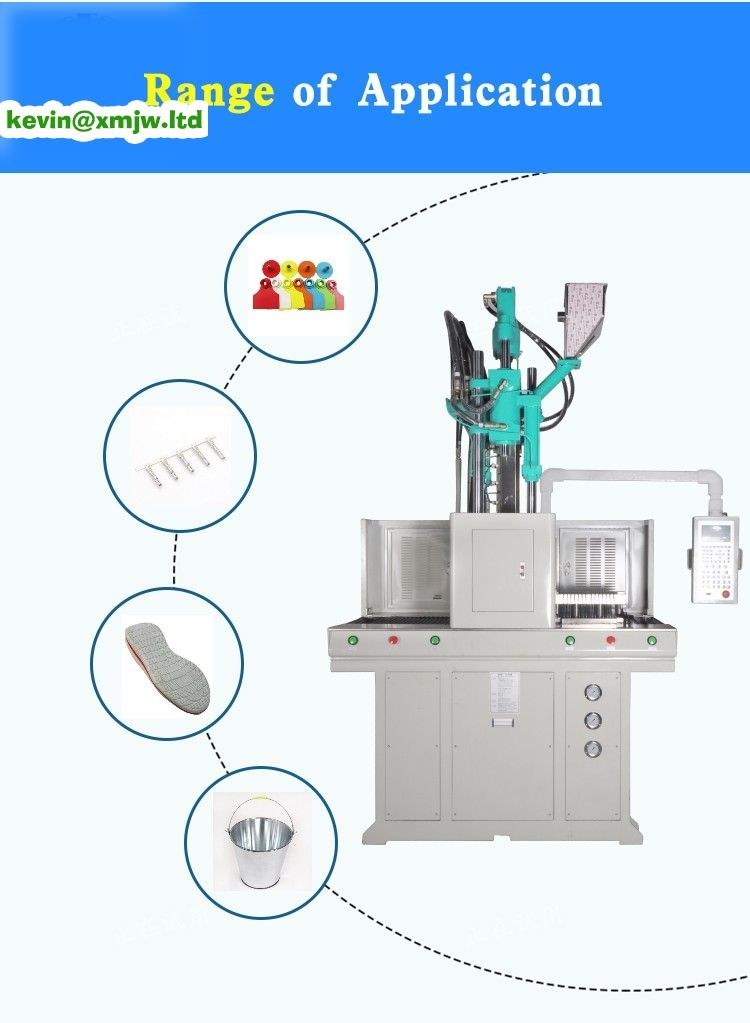

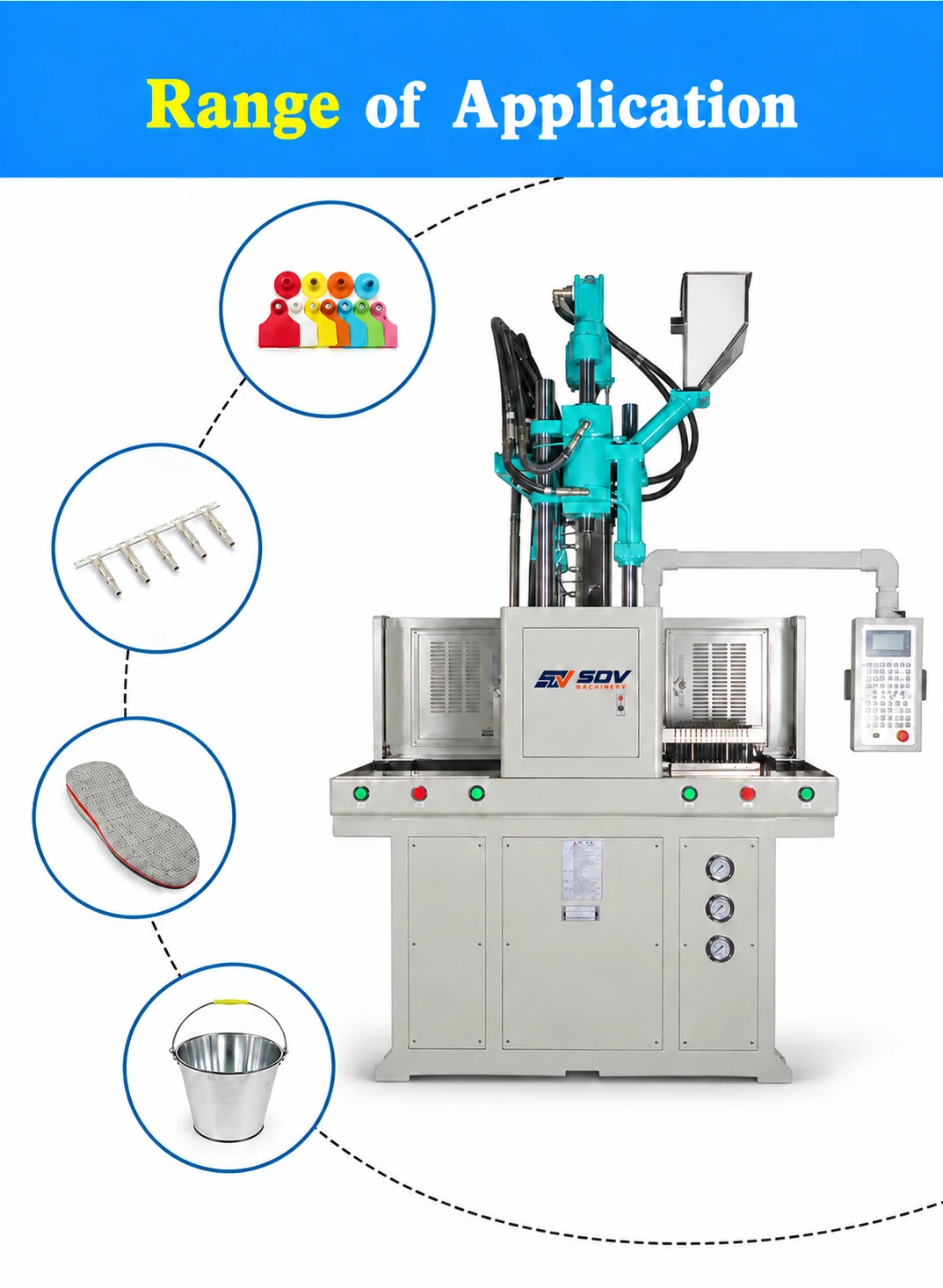

Vertical European Standard Terminal Plug - Shoe Sole Injection Molding MODELUNITJY-450ST-DMINJECTION
MODELUNITJY-450ST-DMINJECTION UNIT Screw DiametermmΦ30Φ32Φ34 Theoretical Injection Volumecm398.5112.5127 Injection Weight(PS)g(oz)93.5(3.3)70(2.47)81.4(2.87） Max. Injection PressureMpa(kgf/cm2) 150(1531）158(1615）133(1356） Injection Ratecm3/s5360.372 Injection Speedmm/s75 Injection Strokemm140Screw Speed Rotationr.p.m0-200 NO. of Temperature control3+1 Nozzle Out From Platensmm>45CLAMPING UNIT Clamping ForceKN(tf)441(45) Clamping Strokemm200 Min. Mold Thicknessmm150/250 Max. Openingmm350/450 (L*W)Distance Between Tie Barsmm410*250 (L*W)Max. Mould Sizemm350*350 (L*W) Slide Sizemm840*400 Ejector Distancemm85 Ejector ForceKN(tf)17.2(1.75)OTHERSSystem PressureMpa(kgf/cm2）13.7（140） Oil Tank CapacityL170 Electric PowerKW(HP)5.5(7.5) Heater PowerKW3.4 Machine Dimensionsm1.5*1.2*2.9 Machine Weighttf1.6 (L*W) Slide size840*400 mm Applicable IndustriesHotels;Garment Shops;Building Material...
Цена выбранного вариантапо запросу
Описание
MODELUNITJY-450ST-DMINJECTION UNIT Screw DiametermmΦ30Φ32Φ34 Theoretical Injection Volumecm398.5112.5127 Injection Weight(PS)g(oz)93.5(3.3)70(2.47)81.4(2.87） Max. Injection PressureMpa(kgf/cm2) 150(1531）158(1615）133(1356） Injection Ratecm3/s5360.372 Injection Speedmm/s75 Injection Strokemm140Screw Speed Rotationr.p.m0-200 NO. of Temperature control3+1 Nozzle Out From Platensmm>45CLAMPING UNIT Clamping ForceKN(tf)441(45) Clamping Strokemm200 Min. Mold Thicknessmm150/250 Max. Openingmm350/450 (L*W)Distance Between Tie Barsmm410*250 (L*W)Max. Mould Sizemm350*350 (L*W) Slide Sizemm840*400 Ejector Distancemm85 Ejector ForceKN(tf)17.2(1.75)OTHERSSystem PressureMpa(kgf/cm2）13.7（140） Oil Tank CapacityL170 Electric PowerKW(HP)5.5(7.5) Heater PowerKW3.4 Machine Dimensionsm1.5*1.2*2.9 Machine Weighttf1.6 (L*W) Slide size840*400 mm Applicable IndustriesHotels;Garment Shops;Building Material...
Технические характеристики
- MODEL
- UNIT | JY-450ST-DM
- INJECTION UNIT
- Screw Diameter | mm | Φ30 | Φ32 | Φ34
- Theoretical Injection Volume
- cm3 | 98.5 | 112.5 | 127
- Injection Weight(PS)
- g(oz) | 93.5(3.3) | 70(2.47) | 81.4(2.87）
- Max. Injection Pressure
- Mpa(kgf/cm2) | 150(1531） | 158(1615） | 133(1356）
