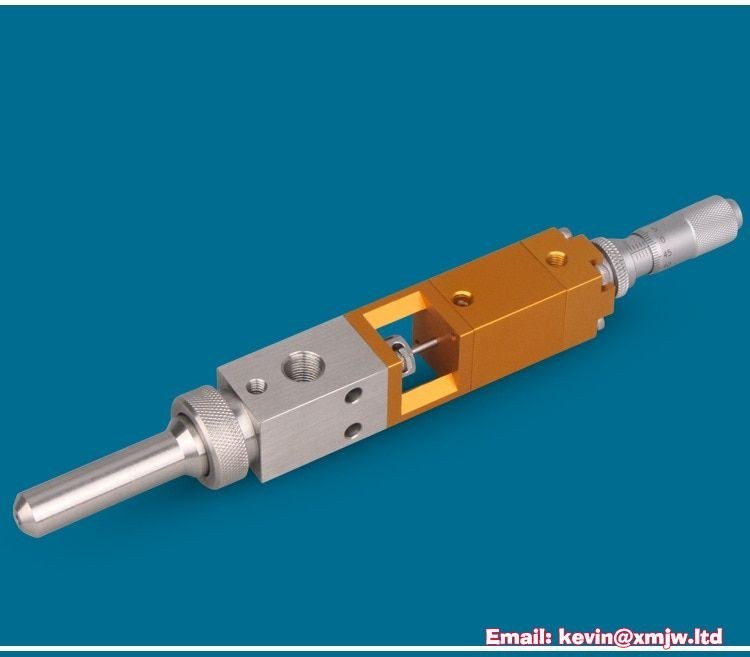

FeaturesModel:YK-65A high frequency spray valveForm:suction-backBody material:stainless steel + aluminum alloy (anodized)Operating viscosity:1-100000CPSMicro adjustment:micrometer fine adjustmentSmall spitting volume:0.01MLFeeding port size:1/8"npt(f)Working air pressure:4-7 kgf/cmOperating rate:<400/minDimensions:Length 203 Width 21 * Height 2MMFeeding pressure:<10KGWeight:258gMethod of use:atomizing glue dispenserInner diameter of glue outlet2MMApplication:low to medium viscosity one-component liquids such as conformal paint, lubricating oil, liquid silicone, ink, white latex, etc.DetailThe distance of the atomization port and the wine drop area of the nozzle can be adjustedEven and fine atomization, convenient cleaning, anti-clogging, no wasteMicrometer with scale for fine adjustment, precision control of glue outputAchieve precision spray operation and ensure that the atomization...
