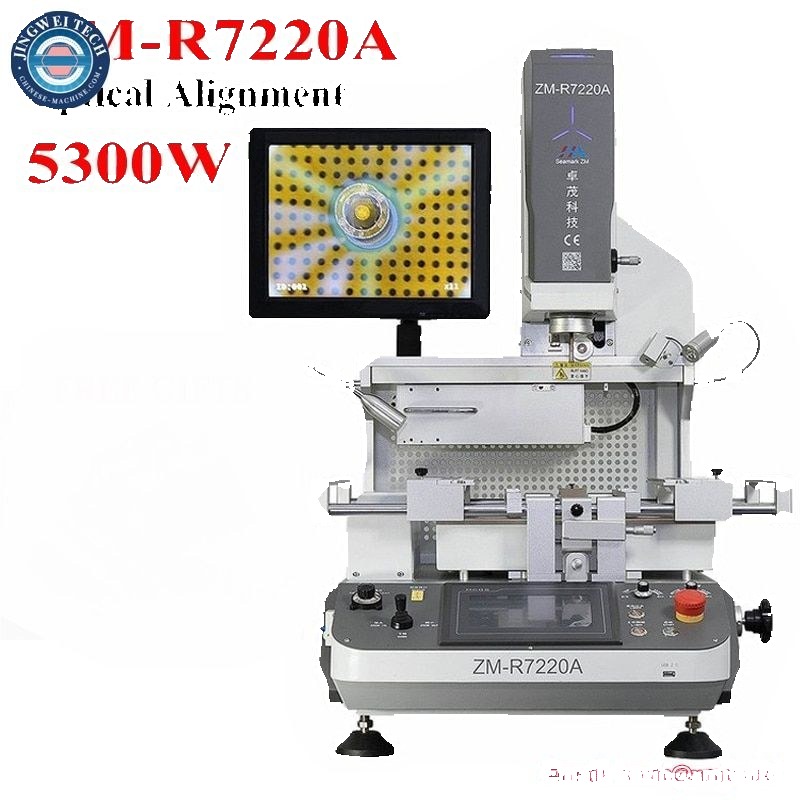

Upgraded Version Original ZM-R7220A BGA Rework Soldering Station 5300W with Optical Alignment 220V or PCB Board BGA Chips RepairSpecifications and technical parametersPowerAC 220V±10％50/60 HzTotal PowerMax 5300WHeater powerTop heater 1200W,Bottom heater 1200W, IR heater 2700 WElectricalmaterialsIntelligenceProgrammable controller, support connect computerTemperaturecontrolK-typethermocouple (Closed Loop), independence temperature control, accuracywithin±3℃PositioningV-groove, PCBsupportPCB sizeMax 415×370mm,Min 65×65mmBGA chipMax 80×80mm,Min 2×2mmDimensionsL680×W630×H900mmSensors1 PCWeight79KGFeatures introduce●3 independent control heaters① Top and bottom heaters are hot-air heating, the third IR heater is infrared heating, the top and bottom heaters can heat PCB from upper and bottom at the same time. temperature accuracy within ±3℃,there are multi segments can be set at the same...
