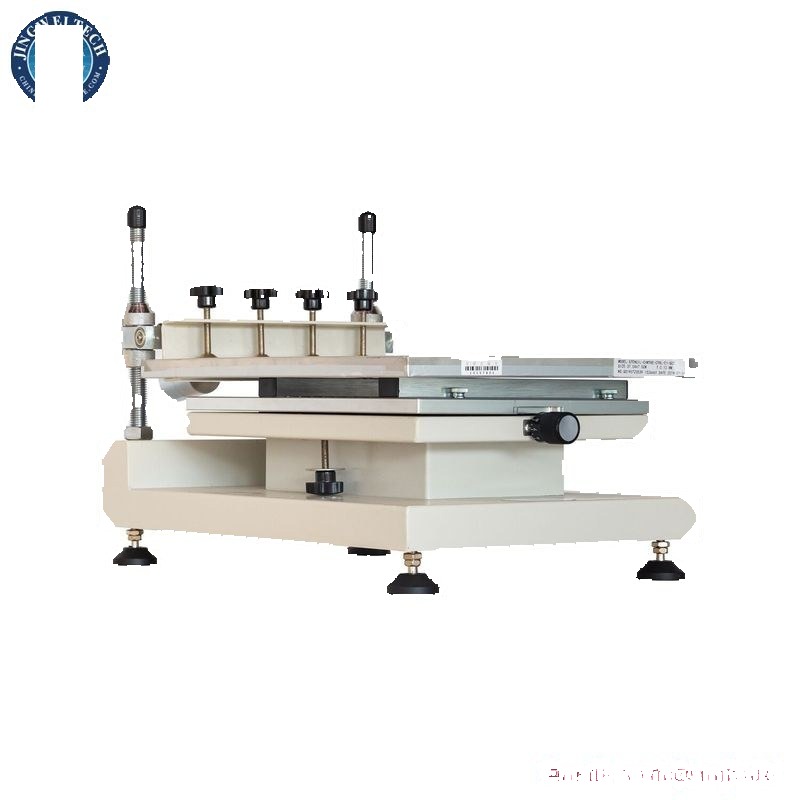

3040 Manual Solder Paste Printer SMT Stencil Printing Machine 300x400mm Chips PCB Silk Screen Silkscreen Glue Printing Workbench size: 300mm*400mm Maximum print size: 250mm*400mm Maximum mesh size: 370mm*470mm. Printing speed: Manual control Unloading thickness: 0-80mm Height of printing platform: 190mm Repetition accuracy: Better than 0.01mm Vertical and horizontal adjustment amount of workbench: 10mm Positioning mode: Shape positioning or datum hole positioning Overall dimension: 540mm (length) *380mm (width) *390mm (height) Allen wrench (- set), thimble (20) Standard configuration list: 25 positioning pins (5 for each of 1/1.5/2.5/3) Fixed plate (2 pieces), scraper + mixing knife (each -- pieces) ApplicationPcb Solder Printering CertificationCE;CE Feature 1Silkscreen Glue Printing Machine is_customizedYes Maximum print size250mm*400mm ModelHigh Precision Solder Paste Screen Printer...
3040 Manual Solder Paste Printer SMT Stencil Printing Machine 300x400mm Chips PCB Silk Screen Silkscreen Glue Printing Workbench size: 300mm*400mm Maximum print size: 250mm*400mm Maximum mesh size: 370mm*470mm. Printing speed: Manual control Unloading thickness: 0-80mm Height of printing platform: 190mm Repetition accuracy: Better than 0.01mm Vertical and horizontal adjustment amount of workbench: 10mm Positioning mode: Shape positioning or datum hole positioning Overall dimension: 540mm (length) *380mm (width) *390mm (height) Allen wrench (- set), thimble (20) Standard configuration list: 25 positioning pins (5 for each of 1/1.5/2.5/3) Fixed plate (2 pieces), scraper + mixing knife (each -- pieces) ApplicationPcb Solder Printering CertificationCE;CE Feature 1Silkscreen Glue Printing Machine is_customizedYes Maximum print size250mm*400mm ModelHigh Precision Solder Paste Screen Printer...
