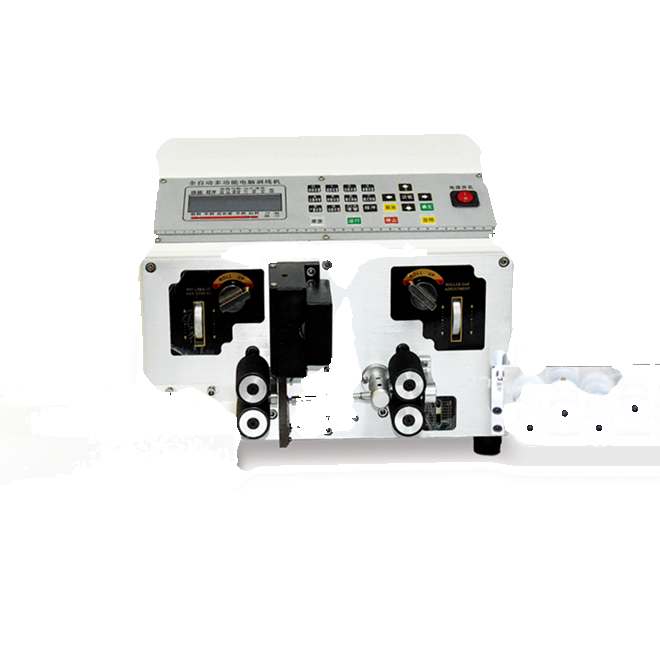

Product Introduction Features Designed for processing large square electronic wires, jacketed cables, and power cables. Program-controlled motor-driven lead screw for belt feeding,eliminating indentation and scratches. Quick and easy feeding component replacement method. 100 data storage slots for rapid retrieval of historical processing parameters, user-friendly operation. Reserve MES hardware interface. Model WG-8650A WG-8650B Stripping Range 2mm-12mm 2mm-12mm Max Stripping Length Front: 150mm /Rear End: 90mm Front: 150mm /Rear End: 90mm Min Processing Length 60 mm ( With middle insulation retained ) 60 mm Cutting Depth 0.1mm 0.1mm Feeding Method Belt Belt Blades 2pcs 4pcs (Two sets of blades can handle multi-core sheathed wires) Power Supply Single-phase AC 220V 50/60Hz Single-phase AC 220V 50/60Hz Production Rate 300-700 pcs/h 300-700 pcs/h Weight 95kg 95kg Dimensions...
