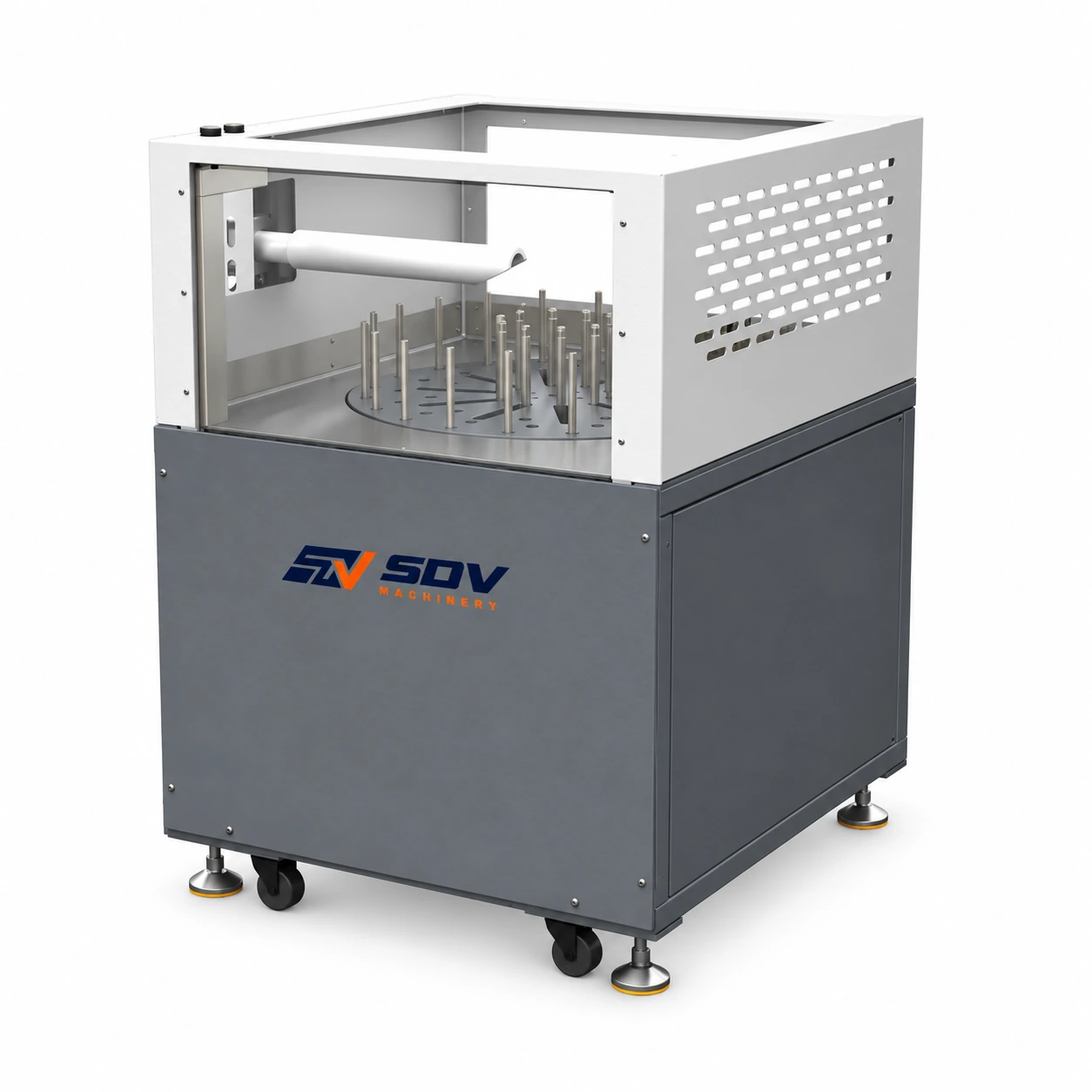

Product Introduction Features Dual motor-driven lifting and feeding mechanism. Tension frame controlled operation with compact storage frame (for ≤8mm cables) enabling space-efficient storage and stable feeding. According to the customer demand, can be optional or customized items: top wire reel device can be optional electric mode, with motor control top wire, more labor-saving and convenient; if the height of the wire reel size in the standard parameters outside the range, can be customized according to the specific dimensions of the top wire reel. Model WG-901-800H WG-901-1250H Minimum Spool Width 400mm 500mm Maximum Spool Width 650mm 950mm Max Spool Weight 400kg 1000kg Pool Diameter 500-800mm 1250mm Power 4.0KW 4.0KW Power Supply Single-phase AC 220V 50/60Hz Single-phase AC 220V 50/60Hz Weight 1.2T (excl. tension frame) 1.5T (excl. tension frame) Dimensions 1700*1200*1600mm...
