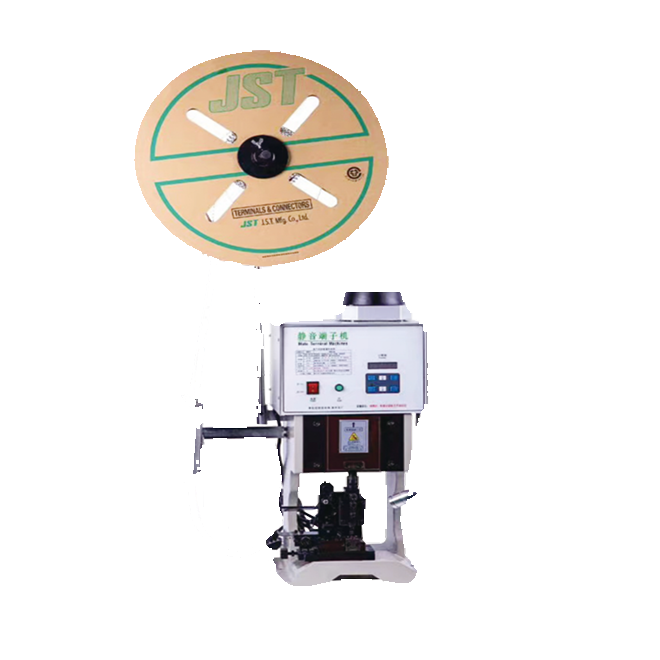

Product Introduction Features Equipped with a color touchscreen panel for intuitive operation and real-time crimping data display. Terminal crimping height adjustment range: 10mm (max) / 4mm (min), theoretical resolution of 0.01mm. Servo motor combined with planetary reducer or worm gear reducer ensures low noise, high precision, and stable performance. Compatible with domestic OTP horizontal/vertical/2000- series dies, 40-stroke pneumatic dies, and imported JM/JST/TE/EU/Korean dies. Optional press stroke: 30mm, 35mm, 40mm. Safety cover with link-type PU protective cover for both safety and aesthetics. Equipped with SOLU sensors; customizable die base and hanging head. Reserved data interface for upload/download functions (optional). WG-6304HSD-FA Model: WG-6304HSD-FA Crimping Method Servo Motor Crimping Crimping Height Adjustment Punch adjustment range: 0-14mm Crimping Height...
