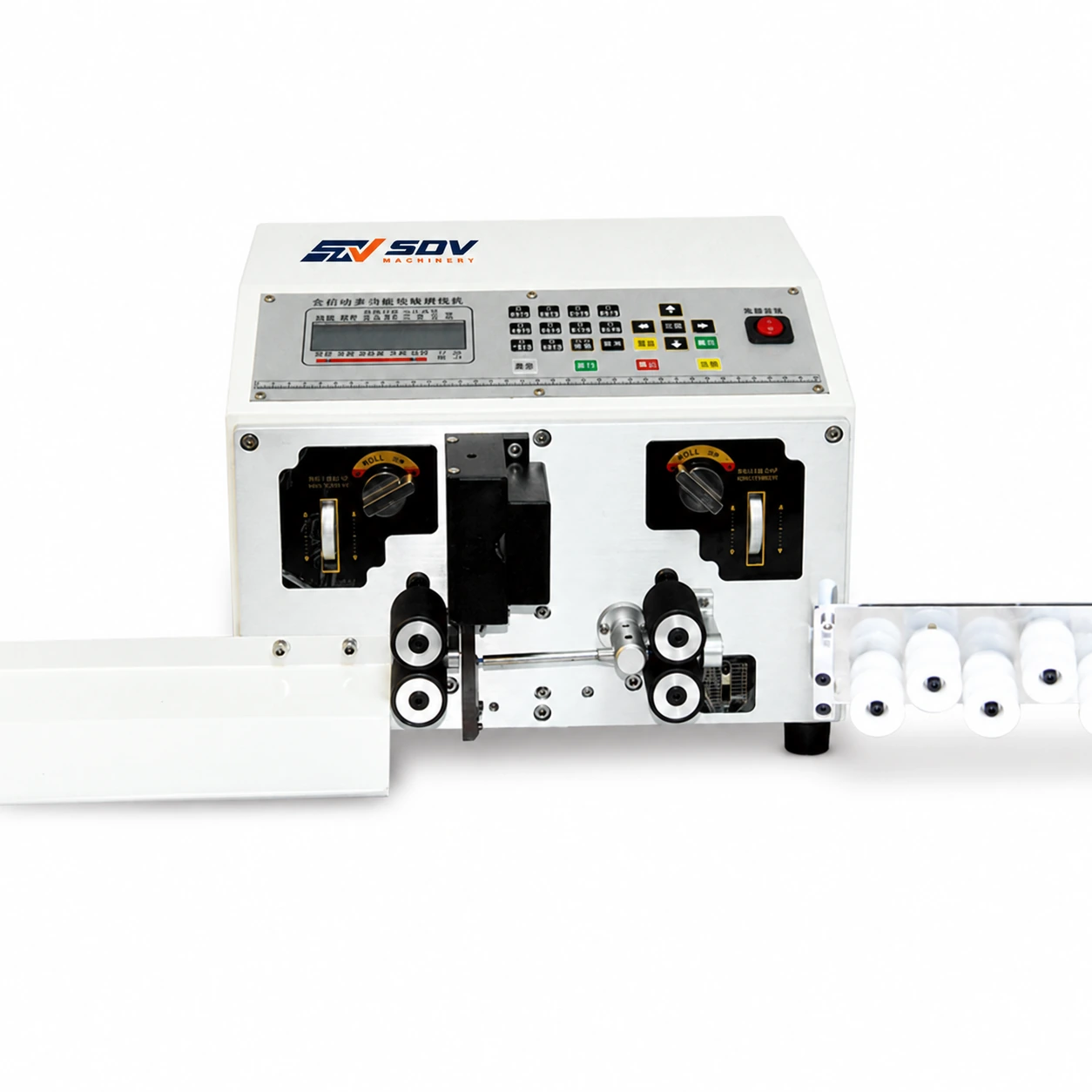

Product Introduction Features Designed for PVC, braided wires, silicone wires, high-temperature wires, Teflon wires. Computer-controlled with button operation, ensuring stable performance. Silent hybrid stepper motor controls wire feeding for enhanced precision. High-speed stripping with customizable head/tail stripping lengths and total wire length within range. Model WG-2004 WG-2006 WG-2016 Stripping Range 0.1-4mm² AWG7#-AWG28# 1.5-16mm² Stripping Length 1.0-30mm Front: 0-30mm / Rear: 0-30mm 1.0-100mm Cutting Length 1.0-99999.9mm 1.0-99999.9mm 1.0-99999.9mm Cutting Tolerance ±0.2%L ±0.2%L ±0.2%L Blades 2pcs 2pcs 2pcs Power Supply Single-phase AC 220V 50/60Hz Single-phase AC 220V 50/60Hz Single-phase AC 220V 50/60Hz Production Rate 3500-5000 pcs/h 1500-2000 pcs/h 2000-3000 pcs/h Power 450W 550W 630W Dimensions 420*400*280mm 420*400*280mm 400*400*280mm
