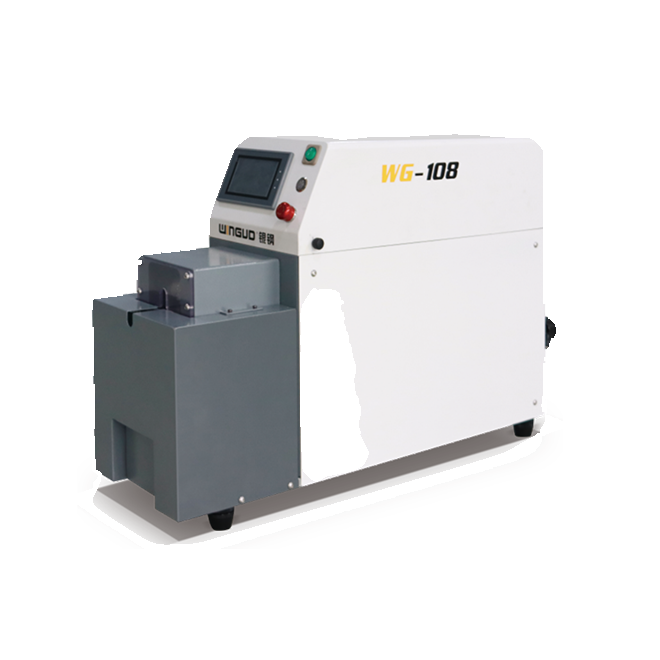

Product Introduction Product Description The WG-108 is an advanced automatic shielding braid processing machine featuring servo motors and microcontroller-based computer control system, specially designed for rapid braid brushing-flipping operations on FAKRA cable shielding networks. Features Touchscreen parameterized settings with proprietary control system, high-speed servo drives with multi-level positioning, and DC motor-driven brush roller shafts for high-precision braid brushing, flipping, and cutting operations. Stable dimensional accuracy and segmented cutting control. Compatible with FAKRA cables. Reserve MES hardware interface. WG-108 Model: WG-108 Name Braid Brushing-Flipping Machine Function Brush, Flip, Weave Processing Length 15mm Processing Range φ2.5mm–φ5mm Power Supply Single-phase AC 220V 50/60HZ Power 1KW Dimensions 800*215*500mm (Actual dimensions may vary)
