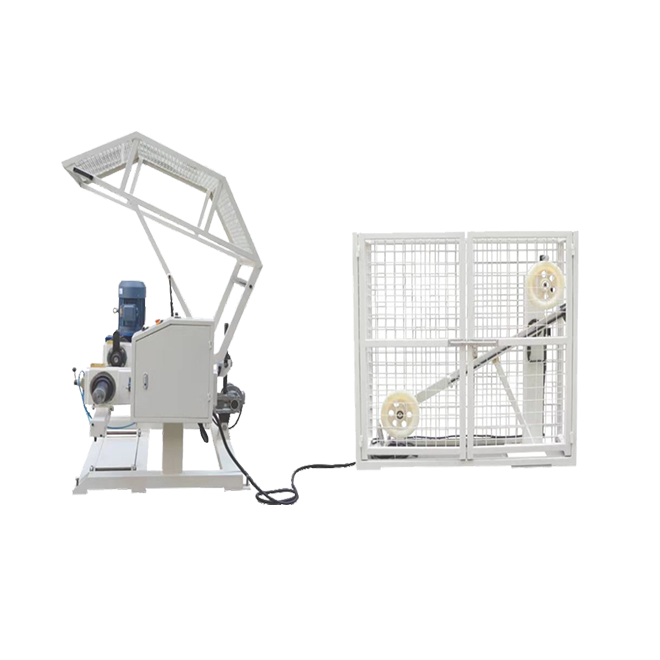

Product Introduction Features Integrated with stripping machines: Auto-feeding activates when storage rack reaches preset height. Optional wire end detection function. Motorized spool lifting system with electric elevation. Model WG-901-800A WG-SX1250 WG-SX1500 Cable Diameter 3mm-30mm 5mm-45mm 5mm-45mm Max Spool Diameter 500-800mm 600-1250mm 800-1500mm Wire Reel Width 350-600mm 500-950mm 600-950mm Max Spool Weight 800kg 1500kg 2000kg Lifting System Gear Reducer + Motor Lifting Gear Reducer + Motor Lifting Gear Reducer + Motor Lifting Power Supply Three-phase 380V Three-phase 380V Three-phase 380V Dimensions 2170*1560*1500mm(Top shaft guard extends 350mm) 2500*1900*1600mm 2500* 1900* 1600mm
