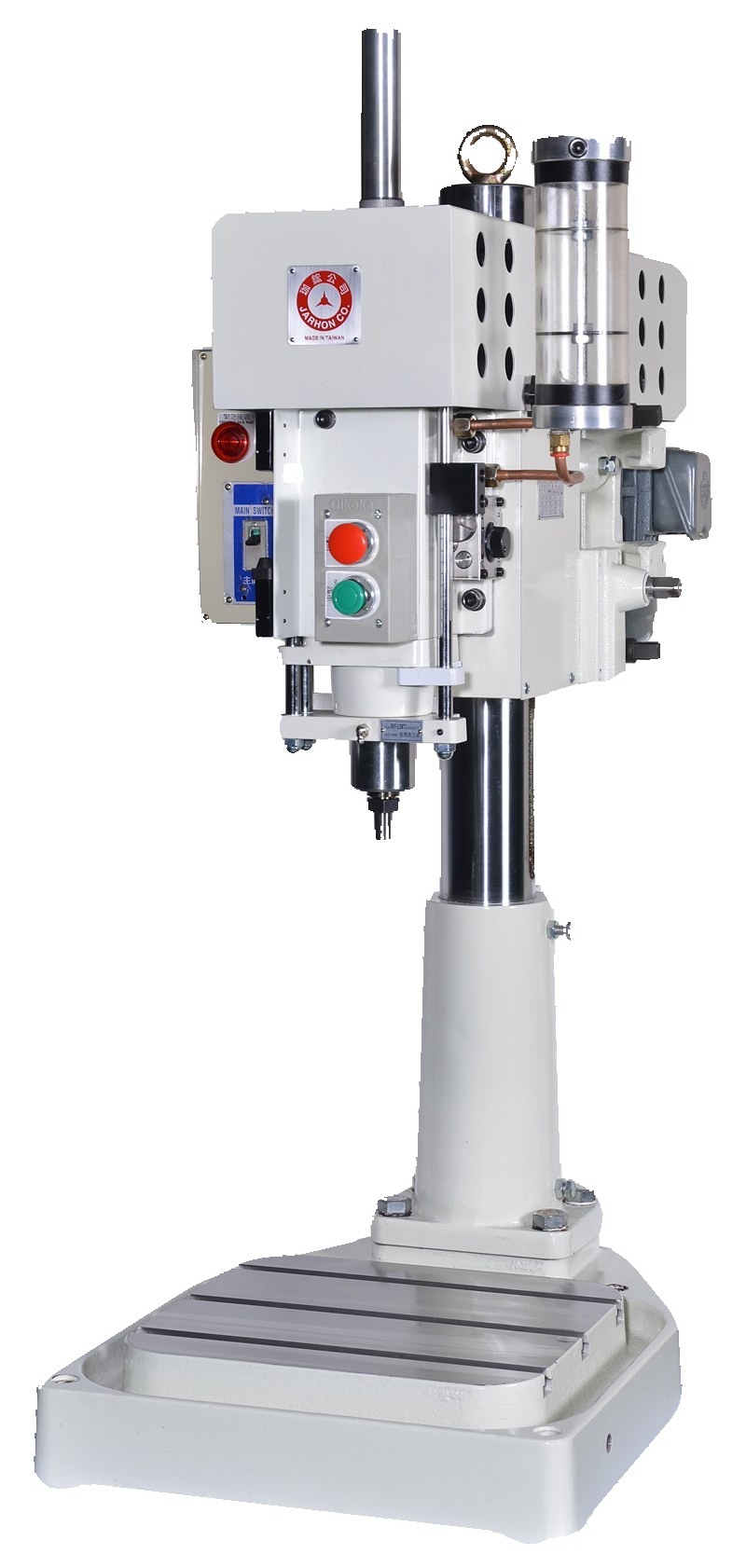

Pneumatic Auto. Drilling Machine JD-13016

Технические характеристики

Main spindle max. stroke(mm)

Drilling stroke(mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table...

130

100 | Ø2~Ø16 | ER-32 JT-6(multi-spindle) | 200~610 | 340x380

Motor

Main spindle speed (R.P.M) | Drilling power(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | Gross Weight(kg)

50HZ

60HZ

3HPx4Px8P

337 495 675 682 990 1365 | 405 594 810 820 1188 1638 | Pneumatic 5 | 120x66x138 (LxWxH) | about280 | 340
