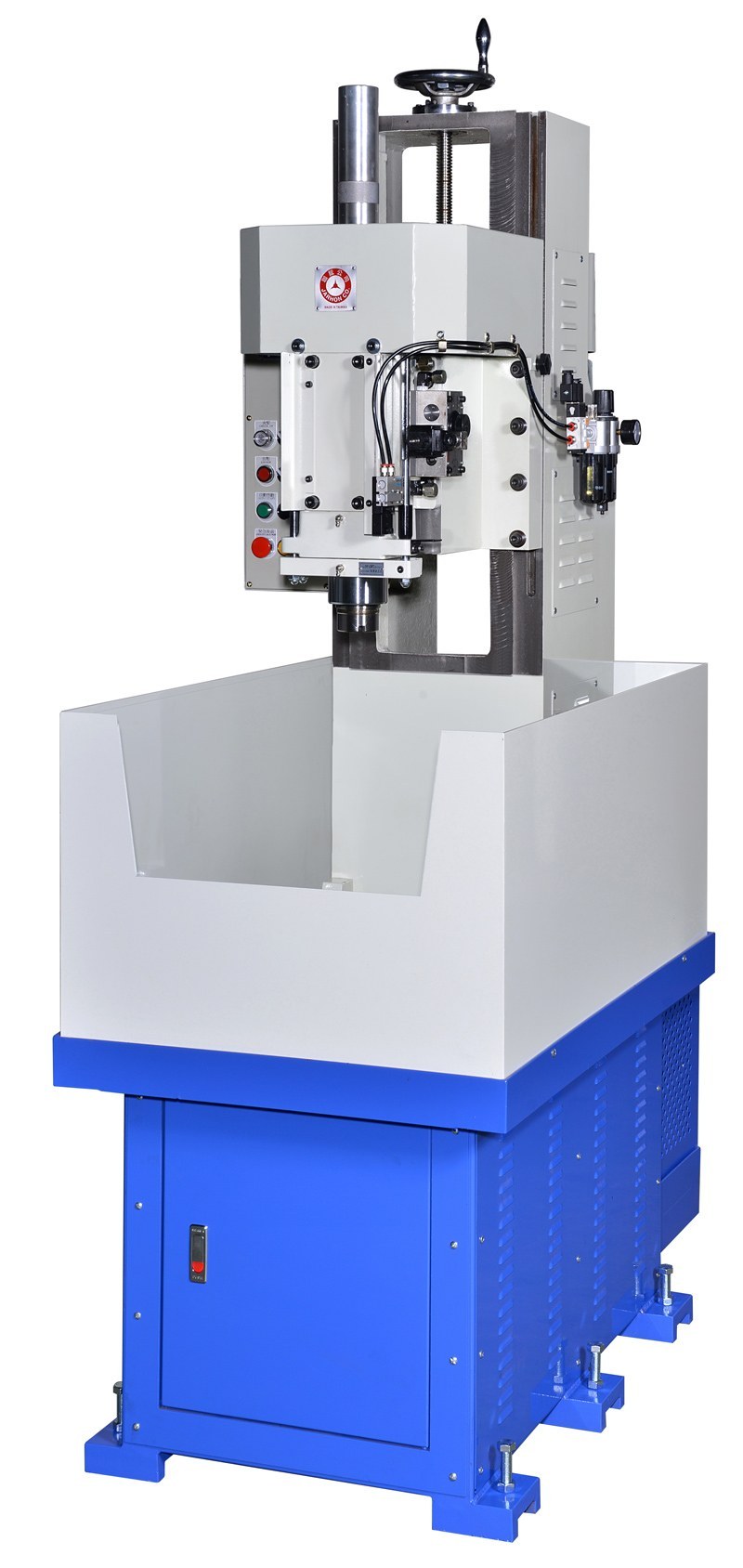

Hydraulic Auto. Drilling Machine JD-15035H

Технические характеристики

Main spindle max. stroke(mm)

Drilling stroke(mm) | Drilling hole capacity(mm) | The shape of the front surface of main spindle, option one(mm) | Distance between the main spindle and the table(mm) | Working table size...

150

130 | Ø35 | ER-40 MT-4# | 420~720 | 400×500

Motor

Main spindle speed (R.P.M) | Drilling hole capacity(kg/cm²) | Packing dimension(cm) | Net Weight(kg) | Gross Weight(kg)

5HPx4P

Appoint one section of speed The max 1500 R.P.M. (Can be equipped with converter) | Hydraulic 25 | 166(L)×84(W)×246(H) | about 1007 | 1100
