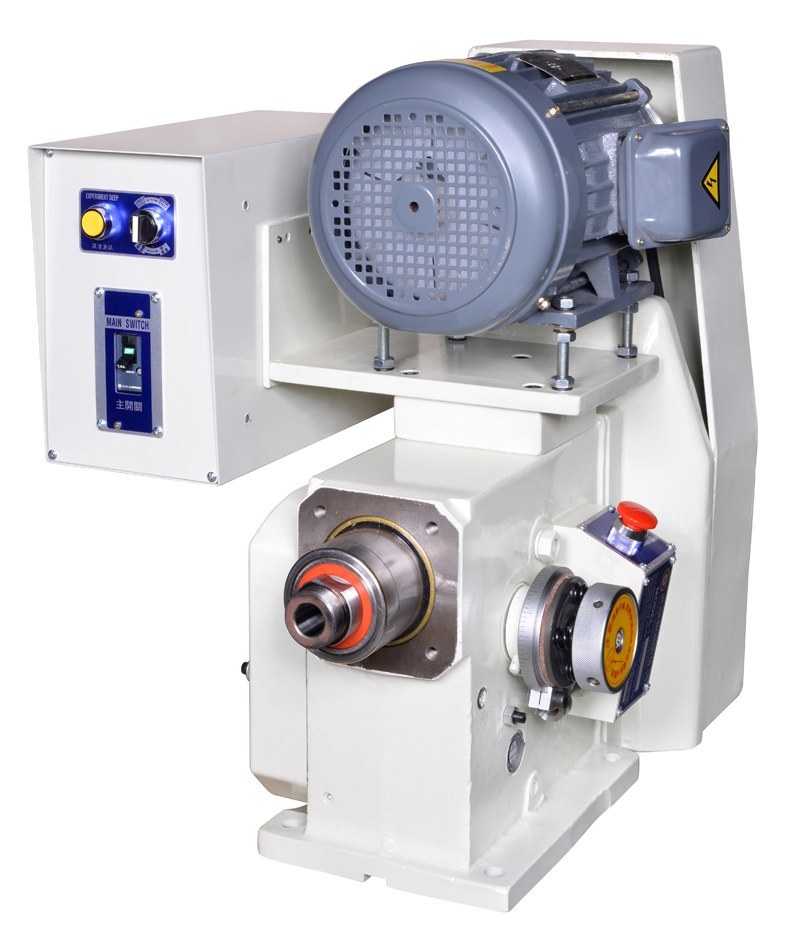

Gear-Pitch Type Auto. Tapping Machine(Horizontal) JT-6532A

Технические характеристики

Type of the front side of Main spindle(mm)

Diameter of thread(mm) | Main spindle max. stroke(mm) | Gross Weight(kg)

MT-3#

Ø10~Ø32 | 65 | 172

Main spindle speed (R.P.M.)

Auto feeding thread pitch for which suits machine | Max. capacity of Multi-spindle | Motor

50HZ

60HZ | Range of TPI | mm

280 150 80

340 180 100 | 19 18 16 14 13 12 11 10 9 8 7 | 1.25 1.5 1.75 1.8 2.0 2.4 2.5 3.0 3.5 | Ø10x10 spindles Ø16x4 spindles Ø20x2 spindles | 3PH 6P 1.5KW (2HP)
