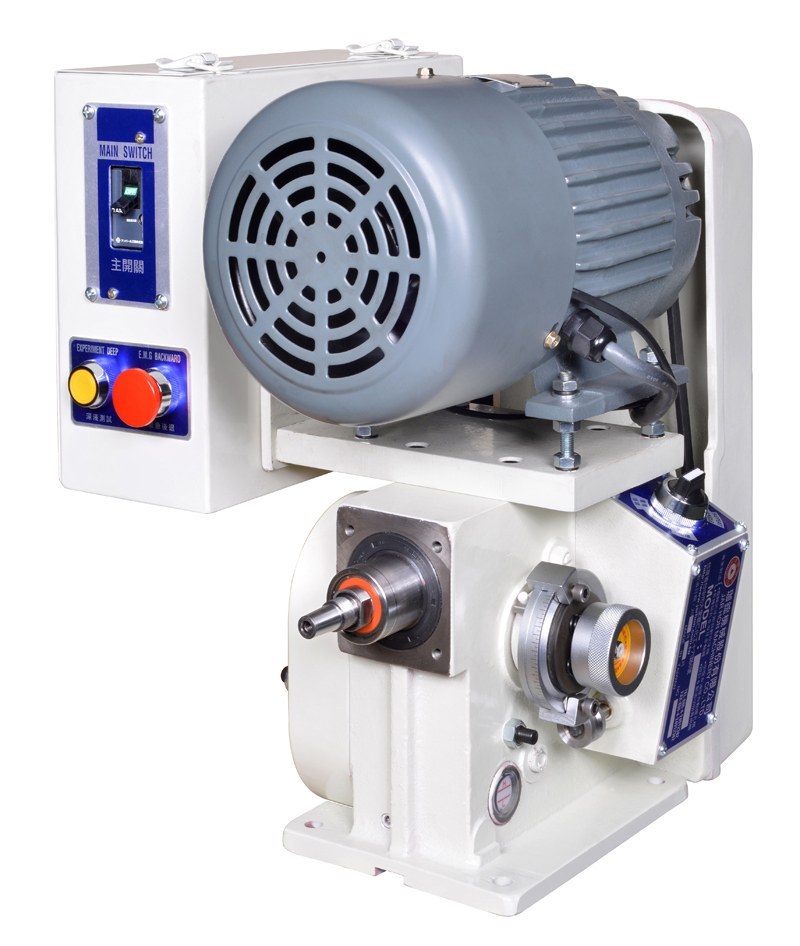

Gear-Pitch Type Auto. Tapping Machine(Horizontal) JT-4508A

Технические характеристики

Type of the front side of Main spindle(mm)

Diameter of thread(mm) | Main spindle max. stroke(mm) | Gross Weight(kg)

JT-2/CT12 tapping collet

Ø2~Ø8 Less than (Ø10) | 45 | 75

Main spindle speed (R.P.M.)

Auto feeding thread pitch for which suits machine | Max. capacity of Multi-spindle | Motor

50HZ

60HZ | Range of TPI | mm

1340 760 420

1600 900 500 | 80 72 64 60 56 48 44 40 36 32 28 27 26 24 20 19 18 (16) | 0.4 0.45 0.5 0.6 0.7 0.75 0.8 0.9 1.0 1.2 1.25 (1.5) (1.75) | Ø3x10 spindles Ø4x5 spindles Ø5x2 spindles | 3PH 4P 0.37KW (1/2HP)
