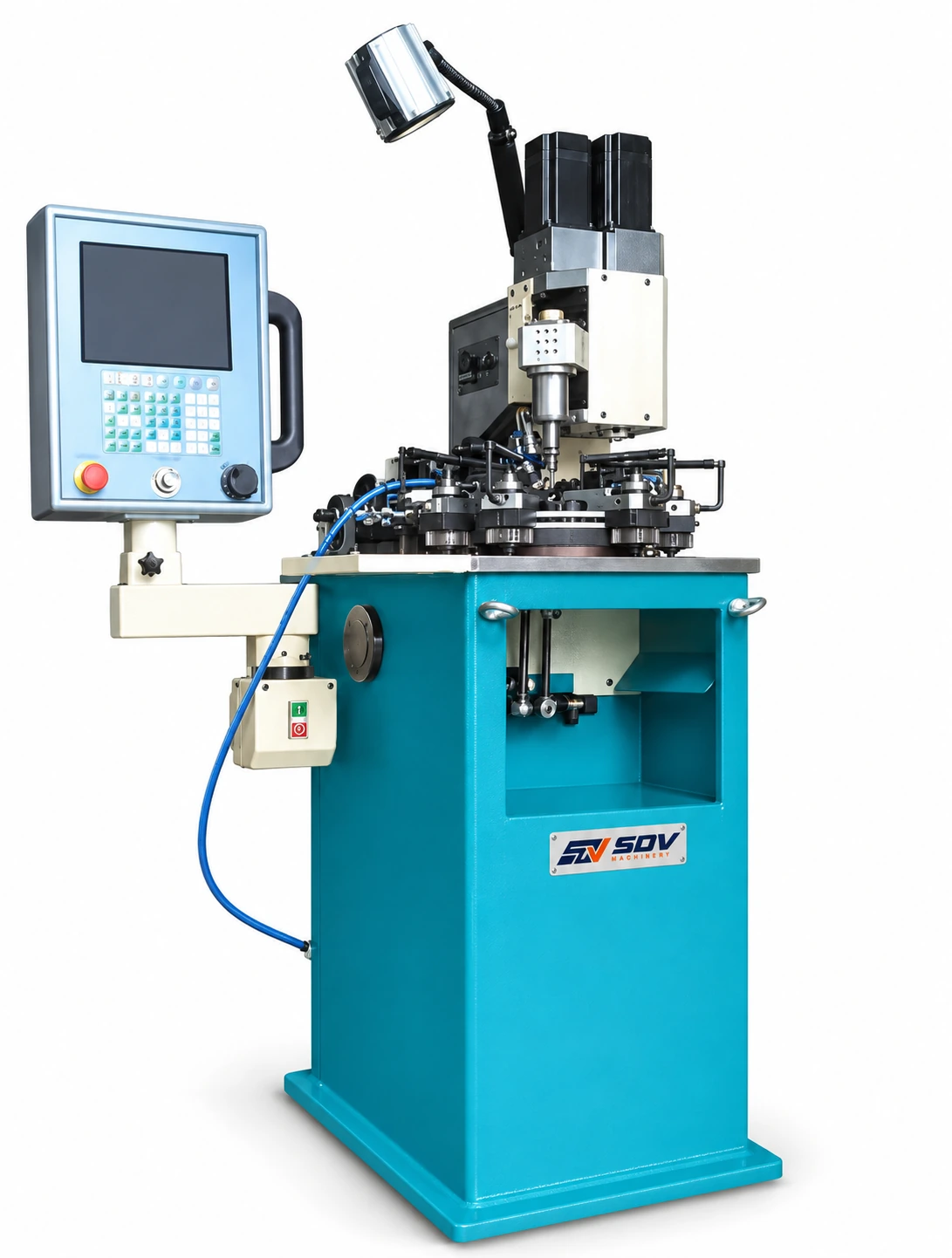

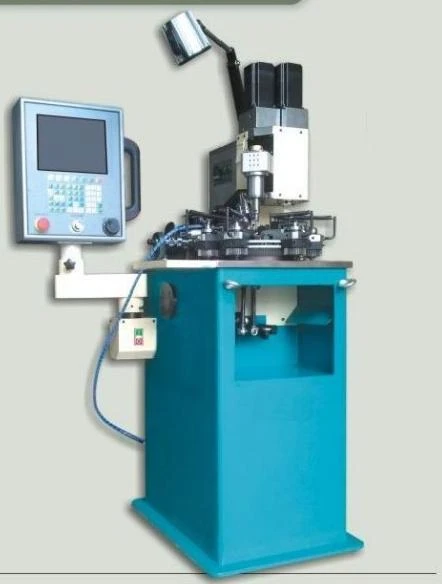

Micro Air Coil Winding Machine GW-AC50

operational principle ： The machine employs computer numerical control (CNC) programming to define the required movements along six axes (X, Y, Z, A, B, and C) during product forming. These movements are executed by high-precision servo motors through data output. By integrating auxiliary equipment such as peeling machines, soldering ovens, and flux dispensers, the system enables one-step processes for product peeling, soldering, and foot bending. This configuration meets customers' demands for automated production, enhanced efficiency, and quality assurance. Key technical parameters: winding diameter 0.2～2.0 mm (copper wire), ≤ flat wire 5 square, width and thickness 5/1 going 5 kW / single-phase 220V working air pressure 0.4～0.8mpa/cm Maximum cable length 42mm Maximum winding turns 999T shape of product A〔Tap〕, E2〔Tap〕, D〔Tap〕, K〔Tap〕, single-layer, multi-layer torsion spring/coil...

● Winding error alarm and line blocking alarm. ●Dual-axis high-power pay-off device: maximum load capacity 100 kg/axis. ●The applicable range of wire diameter is within 20mm 2 ●Automatic universal download structure. ●Automatic feeding mechanism: fully automatic feeding, alarm function for materials not grasped, alarm function for materials not meeting standards, and alarm function for material errors. ●Use air pressure 0.6Mpa Electric voltage ：220V/50Hz Power rate：1300W The machine size：2500×700×1650mm Equipment weight ：300KG ●The defective rate of products is less than three thousandths. ●Human-machine interface, automatic fault prompts, and troubleshooting takes less than 5 minutes. ●Fool-like modular molding design, no debugging is required when changing models, and the switch can be completed within 30 minutes. ●The single-head line changing time is effectively controlled within...

GWPC-870 SQ/UC automatic flat copper wire vertical winding machine The automatic flat copper wire vertical winding machine is used for winding copper wires onto a vertical spool or reel, and it is an essential tool for the manufacturing of electrical components. The machine is easy to use and requires minimal user involvement, making it a reliable and efficient tool in any setting. To use the machine, first, ensure that all safety precautions are taken. The operator should wear protective gear and ensure the machine is in good working condition before starting.

Name: Flat wire vertical winding machine Model: GWPLC-55 Unfolded working size Length * Width * Height 3000*1000*1600 Machinable section <10 square millimeter Machine weight 550KG The largest aspect ratio less than 20 times (wire width divided by thickness) Input voltage single phase 220V Minimum wire thickness greater than 0.1mm Rated power 2.9KW Maximum wire thickness less than 2mm Operating pressure 0.6≤P≤1.0MPa CNC flat-wire winding machines are essential tools for the manufacturing industry. These machines are designed to wind flat wires onto different materials and shapes in a precise and efficient manner. They are a valuable asset for businesses that require high levels of accuracy and consistency in their production processes. One of the key advantages of CNC flat-wire winding machines is their versatility. These machines are capable of winding a wide range of flat wire...
